Datos LLantas y Gomas (interesante)

Mensaje por FREEDOM83 el Dom Jul 14, 2013 9:31 pm

Bueno , pues como tengo tiempo ...
Os pongo lista com medidas de cubiertas crawler para echar un ojo rapido sin salir del foro

1.55

PITBULL GROWLER

NO HAY MEDIDAS

Dirt Grabber All terrain :

Width 24mm / 0.94inch
Outer Diameter: 2.99" (76mm)
1.55 Wheel size
Each tire weight: 1.15 oz / 33 g

Mickey Thompson Single Baja Claw TTC

Outer Diameter: 4.5" (114mm)
Width: 1.61" (41mm)
Inner Diameter : 1.55" (39mm)
Advanced X1 Super Soft & Super Sticky Compound
Reinforced sidewall
Each tire weight: 3.2 oz / 91 g

Mud Hogs

Outer Diameter: 106mm/4.19inch
Width: 36.4mm/1.43inch
Inner Diameter: 39mm/1.55inch
Advanced X3 soft & sticky compound
Reinforced sidewall
Each tire weight: 2.5 oz / 71 g

Mud Trashers

Outer Diameter: 3.67" (93.3mm)
Width: 1.39" (35.4mm)
Inner Diameter: 1.55" (39mm)
Advanced X3 Compound
Each tire weight: 2.35 oz / 67 g

Rock Crusher X/T (Xtreme Terrain)

Outer Diameter: 3.69" (93.9mm)
Width: 1.37" (34.9mm)
Inner Diameter: 1.55" (39mm)
Each tire weight: 2.45 oz /69 g

Rocky Country

Outer Diameter: 4.01" (102mm)
Width: 1.14"/29mm
Inner Diameter: 1.55" (39mm)
Each tire weight: 1.95 oz / 55 g

Mud Slingers

Outer Diameter: 4.11" (104mm)
Width: 1.39" (35.4mm)
Inner Diameter: 1.55" (39mm)
Each tire weight: 2.7 oz / 77 g

Desert King

Outer Diameter: 3.7" (94mm)
Width: 1.29" (33mm)
Inner Diameter: 1.55" (39mm)
X3 Soft compound
Each tire weight: 1.9 oz / 53 g

Invader

Outer Diameter: 104.0mm/4.09inch
Width: 34.5mm/1.35inch
Inner Diameter: 39.37mm/1.55inch
Each tire weight: 2.25 oz / 64 g

Mickey Thompson Baja MTZ

Outer Diameter: 3.30" (84mm)
Width: 1.06" (27mm)
Inner Diameter: 1.55" (39mm)
Advanced X3 Soft & Sticky Compound
Reinforced sidewall
Each tire weight: 1.3 oz / 37 g

Interco Irok

Outer Diameter: 4.33" (109mm)
Width: 1.72" (43.7mm)
Inner Diameter: 1.55" (39mm)
Advanced X3 Soft & Sticky Compound
Reinforced sidewall
Each tire weight: 3.25 oz / 92 g

Mickey Thompson Baja Claw TTC

Outer Diameter: 4.5" (114mm)
Width: 1.61" (41mm)
Inner Diameter : 1.55" (39mm)
Advanced X2 Super Soft & Super Sticky Compound
Reinforced sidewall
Each tire weight: 3.2 oz / 91

Rock Stompers
Outer Diameter: 4.07" (103mm)
Width: 1.42" (36.3mm)
Inner Diameter: 1.55" (39mm)
Each tire weight: 2.9 oz / 82 g

1.7

Interco Irok

Outer Diameter: 4.10" (104.3mm)
Width: 1.65" (42.0mm)
Inner Diameter: 1.7" (43mm)
Advanced X3 Soft & Sticky Compound
Reinforced sidewall
Designed to fit 1.7 wheels (Z-W0124)
Each tire weight: 2.9 oz / 82 g

Mickey Thompson Baja ATZ

Outer Diameter: 2.92" (74.2mm)
Width: .0.91" (23.3mm)
Inner Diameter: 1.7" (44mm)
X4 Compound
Reinforced sidewall
Each tire weight: 1 oz / 29 g

1.9

Rock Crusher X/T

Outer Diameter: 4.25" (108mm)
Width: n/a
Inner Diameter: 1.9" (48mm)

Mud Trashers

Outer Diameter: 3.85" (97.9mm)
Width: 1.46" (37.1mm)
Inner Diameter: 1.9" (48mm)
Each tire weight: 2.1 oz / 61 g

Interco Super Swamper TSL/Bogger

Outer Diameter: 4.79" (121mm)
Width: 1.55" (39.5mm)
Inner Diameter: 1.9" (48mm)
Advanced X3 Soft & Sticky Compound
Reinforced sidewall
Each tire weight: 3.9 oz / 110 g

Dirt Grabber

Outer Diameter: 3.85inch/97.8mm
Width: 1.22" (31mm)
Inner Diameter: 1.9" (48mm)
Each tire weight: 1.85 oz / 52 g

Prowler XS

Outer Diameter: 3.76" (95.5mm)
Width: 1.41" (36.0mm)
Inner Diameter: 1.9" (48mm)
Each tire weight: 2 oz / 56 g

Rock Creepers

Outer Diameter: 3.76" (95.6mm)
Width: 1.45" (37mm)
Inner Diameter: 1.9" (48mm)
Each tire weight: 2.35 oz / 67 g

Crazy Crawler

Outer Diameter:3.98" (101mm)
Width: 1.55" (39.4mm)
Inner Diameter: 1.9" (48mm)
Each tire weight: 2.45 oz / 69 g

FlashPoint Military

Outer Diameter: 4.13" (104mm)
Width: 1.52" (38.7mm)
Inner Diameter: 1.9" (48mm)
Advanced X2 SS Compound (Super Soft & Super Sticky)
Reinforced sidewall
Each tire weight: 2.6 oz / 73 g

Rock Crusher II X/T

Outer Diameter: 4.25" (107mm)
Width: 1.53" (38.9mm)
Inner Diameter: 1.9" (48mm)
Each tire weight: 3.3 oz / 93 g

Mud SLingers

Outer Diameter: 3.66" (93mm)
Inner Diameter: 1.9" (48mm)
Width: 1.39" (35.5mm)
Weight: 65 g / 2.3 oz

Mud Plugger

Outer Diameter: 3.98inch/101.0mm
Width: 1.25" (31.7mm)
Inner Diameter: 1.9" (48mm)
Advanced X3 sticky & soft compound
Each Tire weight: 2.5 oz / 71 g

Dick Cepek Mud Country

Outer Diameter: 3.95" (100mm)
Width: 1.53" (38.9mm)
Inner Diameter: 1.9" (48mm)
Advanced X3 Soft & Sticky Compound
Reinforced sidewall
Each tire weight: 2.55 oz / 73 g

Trail Buster

Outer Diameter: 4.05inch/103mm
Width: 1.32" (33.5mm)
Inner Diameter: 1.9" (48mm)
Advanced X3 Soft & Sticky Compound
Reinforced sidewall
Each tire weight: 2.6 oz / 74 g

X-Lock Crawling Comp

Outer Diameter: 3.79" (96.4mm)
Width: 1.39" (35.2mm)
Inner Diameter: 1.9" (48mm)
Each tire weight: 1.7 oz / 48 g

Tomahawk

Outer Diameter: 4.1" (104.2mm)
Width: 1.43" (36.39mm)
Inner Diameter: 1.9" (48mm)
Each tire weight: 2.55 oz / 73 g

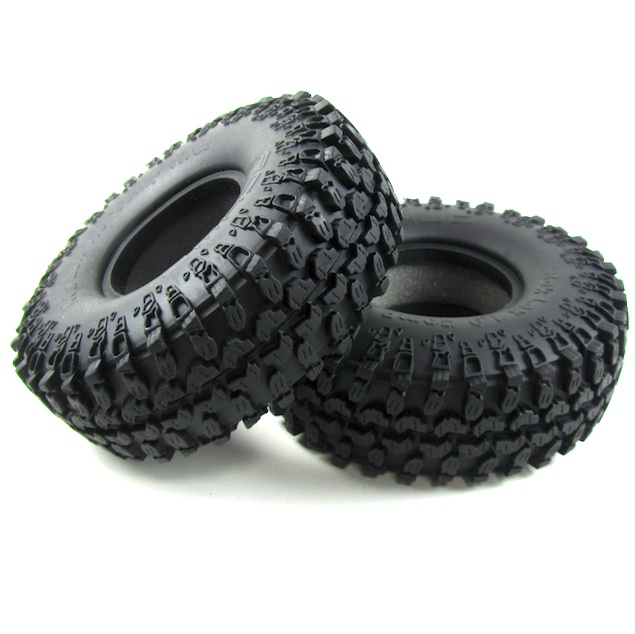

Rok Lox

Outer Diameter: 4.54" (114.7mm)
Width: 1.5" (38mm)
Inner Diameter: 1.9" (48mm)
Advanced X3 Compound
Each tire weight: 3.2 oz /91 g

Mickey Thompson Baja Claw TTC

Outer Diameter: 4.75" (120mm)
Width: 1.75" (44.3mm)
Inner Diameter: 1.9" (48mm)
Advanced X2SS Super Soft & Super Sticky Compound
Reinforced sidewall
Each tire weight: 3.8 oz / 108 g

Interco Irok

Outer Diameter: 4.64" (118mm)
Width: 1.84" (46.7mm)
Inner Diameter: 1.9" (48mm)
Advanced X2 SS Compound (Super Soft & Super Sticky)
Reinforced sidewall
Each tire weight: 3.45 oz / 98 g

Mickey Thompson Baja Claw 4.19"

OD:  4.18"  (105.8mm)
Width: 1.58" (40.4mm)
Inner Diameter: 1.9" (48mm)
Advanced X2 SS Compound (Super Soft & Super Sticky)
Each tire weight: 2.15 oz / 61 g

Mickey Thompson Baja MTZ

OD: 4.19inch (106.4mm)
Width: 1.28inch (32.6mm)
Inner Diameter: 1.9" (48mm)
Advanced X2 SS Compound   (Super Soft & Super Sticky)
Each tire weight: 2.05 oz / 58 g

MIL-SPEC ZXL

OD:4.25inch(108mm)
Width:1.41inch(36mm)
Inside diameter:1.77inch(45mm)
Each tire weight: 3.35 oz / 95 g

USSR Militay

OD: 4.13" (105mm)
Width: 1.21" (30.7mm)
Inner Diameter: 1.9" (48mm)
Fits 1.9 Wheels only
X3 Coumound
Each tire weight: 2.3 oz /65 g

Duckw Military
Standard X3 Compound
Outer Diameter:3.98"(101.2mm)
Width:1.26"(32mm)
Inner Diameter:1.77"(45mm)
Each tire weight: 2.2 oz / 63 g

Challenger
Outer Diameter: 4.24in/107.8mm
Width: 1.4in/35.6mm
Inner Diameter: 1.9in/48.3mm
Advanced X2 SS Compound (Super Soft & Super Sticky)
Each tire weight:2.35oz/67g

Axial Maxxis Trepador

Officially licensed by Maxxis
4.6" (117mm) height x 1.25" (32mm) tread width, 1.5" (38mm) overall width
Fits all 1.9 wheels
Directional tread pattern
Molded in our sticky R35 rubber compound

Axial RipSaw

Realistic and aggressive tread design for the ultimate scale appearance and maximum grip provided by our sticky R35 compound
4.3" (109mm) tall for extreme ground clearance
Molded ribbing between the lugs help keep mud and snow from packing into the tire tread
Recessed lugs for additional traction

Interco TSL SX Super Swamper XL G8 Rock Terrain

Interco TSL SX Super Swamper Replica Design
XL Size to tackle tougher terrain and more obstacles
Made in the Legendary G8 Rock Crawling Compound
Memory Foam Included
Made in the USA, since 1982 – Read about Pro-Line Racing’s History
Interco TSL SX Super Swamper XL 1.9" G8 Rock Terrain Truck Tires (2 pcs)
Oversized Memory Foam (2 pcs)
Tire Compound Colored Dot Chart   Height:   4.75" (121mm)
Width:   1.75" (44mm)

Interco TSL SX Super Swamper XS G8 Rock Terrain

Interco TSL SX Super Swamper replica design
Available in G8 (Rock Terrain) compound
Memory foam included
Interco TSL SX Super Swamper 1.9" G8 Rock Terrain Truck Tires (2 pcs)
Oversized Memory Foam (2 pcs)
Tire Compound Colored Dot Chart   Height:   4.30" (109mm)
Width:   1.50" (38mm)

ProLine Flatiron

Aggressive tread make a perfect blend for a variety of surfaces
A true rock crawling look
Memory Rock Crawling foams at no additional cost
Made from M8 (Crawling) compound
Made in the USA, since 1982 - Read about Pro-Line Racing's History
Flat Iron 1.9" tires (2 pcs)
Oversized memory foam (2 pcs)
Tire Compound Colored Dot Chart
Height:   4.20" (107mm)
Width:   1.52" (39mm)


Gmade MT 1901

Tire Height: 105mm (4.2")
Tire Width: 38mm (1.5")
Inner Diameter: 48mm (1.9")

Mex Offroad 1.9(medium)

Outer Diameter: 3.74" (95mm)
Width: 1.34" (35mm).

Mex Terrain 1.9

96mm

Mex-offroad 1.9(medium)

Outer Diameter: 4.25" (108mm)
Width: n/a
Inner Diameter: 1.9" (48mm)

rc4wd Two Face 1.9 Offroad

Outer Diameter: 4.48" (114mm)
Width: 1.77" (45mm)
Inner Diameter: 1.9" (48mm)
X3 Super soft compound

pitbull rockbeast

NO HAY MEDIDAS

Pro-Line Chisel fits

Pro-Lines highly anticipated rock crawling Chisel tire in G8 compound is ready for your 1.9 rock crawler. Check out all that the Chisel has to offer and what people are already saying about the Chisel and G8 compound.
Features:
3.72 tall x 1.46 wide for maximum balance of ground clearance and climbing ability
9 different rows of tread for the ultimate in terrain diversity
Open lug design enhances grab ability on a variety of surfaces. It also cleans out phenomenally in mud or snow conditions
Remarkable side hilling capability due to strategic tread design, tread spacing and siping throughout the tread
Oversize memory foam included
What's included:
Chisel tires (Pair)
Oversized memory foam

Scale Doctor 1,9 scale tire (v2)

1. Perfectly proportioned lug geometry for super scale realism.
2. Rounded contact patch that is narrower than the sidewall, for true tire shape just like 1:1 tires.
3. Reduced inner diameter for a snug fit on your 1.9 wheel.
4. Real rubber compound for long life and extreme stickiness.
5. 94mm x 33mm

Trail Doctor SUPER Soft
Trail Doctor ULTRA Soft

Fits all 1:10 touring car wheels , 26 and 24 mm width, also tamiya F-350 rims
Dimensions:
- 95 mm outside diameter
- 33 mm width
- 48 mm inner diameter (1,9 inches)

Trail Doctor XL Soft
Trail Doctor XL ULTRA Soft

Fits all 1:10 touring car wheels , 26 and 24 mm width, also tamiya F-350 rims
Dimensions:
- 108 mm outside diameter
- 35 mm width
- 48 mm inner diameter (1,9 inches)









Otro dia sigo con las 2.2 .... ahora voy a ver si consigo poner fotos a todas estas....
si conoceis otros modelos que falten ponerlo y actualizo la lista.
:drinks:

FREEDOM83

Mensajes : 640
Fecha de inscripción : 05/01/2012
Edad : 33
Localización : Vitoria-Gasteiz

Ver perfil de usuario http://euskoscalecrawler.foroactivo.com/

Volver arriba Ir abajo

Re: Datos LLantas y Gomas (interesante)

Mensaje por FREEDOM83 el Mar Jul 16, 2013 4:16 am

Meto aqui las 2.2 que si no queda muy largo el mensaje :

2.2

Spooky Krawler

Outer Diameter: 128.9mm/5.07inch
Width: 48mm/1.89inch
Inner Diameter: 2.2" (56mm)
Compound: X3 Ultra Soft
Each tire weight: 4.75 oz / 135 g

Interco IROK 2.2 Super Swamper

OD: 5.75"(146mm)
Width:2.25"(57mm)
Inner Diameter: 2.04"(52mm)
Fit 2.2 wheel only
Advanced X2 SS Compound (Super Soft & Super Sticky)
Each tire weight: 5.4 oz / 153 g

X-Lock Crawling 2.2 Comp Tires


Outer Diameter: 5.51" (140mm)
Width: 2.08" (53.8mm)
Inner Diameter: 2.2" (56mm)
Each tire weight: 4.35 oz /123 g

Hollowpoint Scale Comp 2.2

Outer Diameter: 5.28" (134mm)
Width: 1.92" (48.7mm)
Inner Diameter: 2.2" (56mm)
Each tire weight: 4.65 oz / 132 g

Dune X/T 2.2 Off-Road

Durable & rugged X4 rubber construction
Outer Diameter: 110mm/4.33inch
Width: 42.9mm/1.69inch
Inner Diameter: 2.2" (56mm)
Each tire weight: 3 oz / 85 g

Gauntlet Scale

Outer Diameter: 4.86" (123mm)
Width: 1.80" (45.9mm)
Inner Diameter: 2.2" (56mm)
Each tire weight: 3.5 oz / 99 g

MIL-SPEC ZXL

Outer Diameter: 5.19" (132mm)
Width: 1.71" (43.5mm)
Inner Diameter: 2.2" (56mm)
Each tire weight: 5.05 oz / 143 g

mud slingers

Outer Diameter: 4.88" (124mm)
Width: 1.93" (49.1mm)
Inner Diameter: 2.2" (56mm)
Each tire weight: 4.25 oz / 121 g

Rock crusher x/t

Outer Diameter: 5.5" (139mm)
Width: 1.97" (50mm)
Inner Diameter: 2.2" (56mm)
Each tire weight: 6.15 oz / 174 g

two faces

Outer Diameter: 5.57" (141.5mm)
Width: 1.81" (46mm)
Inner Diameter: 2.2" (56mm)
Directional tires
Weight: 116g/4.1oz
X3 Super soft compound

Interco Super Swamper 2.2 TSL/Bogger

Outer Diameter: 5.7" (145mm)
Width: 1.83" (46.7mm)
Inner Diameter: 2.2" (56mm)
Advanced X2 Super Soft & Super Sticky Compound
Reinforced sidewall
Each tire weight: 5.15 oz / 146 g

Mickey Thompson 2.2 Baja Claw TTC

Outer Diameter: 5.70" (145mm)
Width: 2.07" (52.6mm)
Inner Diameter: 2.2" (56mm)
Advanced X2 Super Soft & Super Sticky Compound
Reinforced sidewall
Each tire weight: 5.7 oz / 162 g

Dick Cepek 2.2" Mud Country

OD:5.19" (132mm)
Width:2.05" (52.2mm)
Inner Diameter:2.2" (55.88mm)
Fit 2.2 wheel only
Advanced X2 SS Compound (Super Soft & Super Sticky)
Each tire weight: 4.5 oz / 128 g

Mickey Thompson 2.2 Baja MTZ

OD: 4.76" (121.1mm)
Width: 2.08" (52.9mm)
Inner Diameter: 2.2" (55.88mm)
Advanced X2 SS Compound (Super Soft & Super Sticky)
Each tire weight: 3.65 oz / 104 g

rok lox

Outer Diameter: 5.55" (141mm)
Width: 1.69" (42.9mm)
Inner Diameter: 2.2" (56mm)
Compound: X3 Ultra Soft
Each tire weight: 5.1 oz / 145 g

Axial 2.2 Ripsaw Tires X Compound

• Realistic and aggressive tread design for the ultimate scale appearance and performance
• Measuring 5.5" (140mm) tall for extreme ground clearance
• Molded ribbing between the lugs help keep mud and snow from packing into the tire tread
• Recessed lugs for additional traction
• Standard foam included
• New "R35" sticky rubber compound (white dot)
• 5.5" tall x 2.1" wide

Axial Hankook Dynapro Mud Terrain Tires 34mm

Officially licensed Hankook Dynapro MT tires perform as good as they look. The front tires are narrow (34mm) which help navigate the terrain while the rear tires are wide (41mm) putting the power to the ground with enough traction to keep firmly planted. Internal ribbing helps reinforce the sidewall to prevent it from folding over which keeps the tires working at peak performance

Axial Hankook Mud Terrain Tires 41mm

Officially licensed Hankook Dynapro MT tires perform as good as they look. The front tires are narrow (34mm) which help navigate the terrain while the rear tires are wide (41mm) putting the power to the ground with enough traction to keep firmly planted. Internal ribbing helps reinforce the sidewall to prevent it from folding over which keeps the tires working at peak performance

Proline Badlands 2.2" All Terrain Truck

Super-aggressive styling
Motocross style tread for longevity and superior traction
Foam inserts included
Available in M2 Medium compound
Made in the USA, since 1982 - Read about Pro-Line Racing's History
Badlands tires (2 pcs)
Foam inserts (2 pcs)
Tire Compound Colored Dot Chart Height: 5.06" (129mm)
Width: 2.07" (53mm)

proline Chisel 2.2" G8 Rock Terrain Truck

A whopping 5.4" tall x 2.3" wide for maximum ground clearance and significant contact patch
9 different rows of tread for the ultimate in terrain diversity
Open lug design enhances your grab ability on a variety of surfaces. It also cleans out phenomenally in mud or snow conditions
Remarkable side hilling capability due to strategic tread design and tread spacing
Oversize memory foam included
Optional 2-stage foam also available
Made in the USA, since 1982 - Read about Pro-Line Racing's History
G8 compound
Utilizes a totally unique compounding process. Super soft yet maintains tread shape and carcass shape while climbing under the most extreme conditions
Ridiculously long-lasting
Specially formulated for all types of rock surfaces
"We have over 40 packs on our G8 Hammers and they are just starting to show wear“ Mike and Dale Johnson.
"Simply amazing traction on anything I throw at the G8" -Don Hughes aka Don Hughes
Chisel tires 2.2" (2 pcs)
Oversized memory foam (2 pcs)
Tire Compound Colored Dot Chart Height: 5.40" (137mm)
Width: 2.30" (58mm)

proline Flat Iron 2.2" M3 (Soft) Rock Terrain Truck

Aggressive tread make a perfect blend for a variety of surfaces
A true rock crawling look
Memory Rock Crawling foams at no additional cost
Made from M3 (Soft) compound
Made in the USA, since 1982 - Read about Pro-Line Racing's History
Flat Iron 2.2" tires (2 pcs)
Soft memory foam (2 pcs)
Tire Compound Colored Dot Chart Height: 4.84" (123mm)
Width: 2.15" (55mm)

proline Interco TSL SX Super Swamper 2.2" G8 Rock Terrain Truck

Interco TSL SX Super Swamper replica design
Available in G8 (Rock Terrain) compound
Memory foam included
Interco TSL SX Super Swamper 2.2" G8 Rock Terrain Truck Tires (2 pcs)
Oversized Memory Foam (2 pcs)
Tire Compound Colored Dot Chart Height: 5.40" (137mm)
Width: 2.05" (52mm)

Gmade Bighorn Rock Crawling Tires (2) for Gmade 2.2 GT beadlocks series & 2.2 inch Size Wheels


Tire Height: 136mm(5.3")
Tire Width: 59mm(2.3")
Inner Diameter: 56mm(2.2")







ya se que faltan...darme tiempo....

FREEDOM83

Mensajes : 640
Fecha de inscripción : 05/01/2012
Edad : 33
Localización : Vitoria-Gasteiz

Ver perfil de usuario http://euskoscalecrawler.foroactivo.com/

Volver arriba Ir abajo

Re: Datos LLantas y Gomas (interesante)

Mensaje por ChicharoRC el Jue Jul 18, 2013 7:03 am

Muy buena recopilación.......que buena, no, EXCELENTE RECOPILACION Felicidades cheers

Saludos

P.D. tendrás un inconveniente en que muestre estas gomas Gmade MT 1901 en su empaque original ?....las acabo de comprar y recién tendrán una semana que llegaron a casa.

ChicharoRC

Mensajes : 1313
Fecha de inscripción : 17/12/2010
Edad : 43
Localización : Leon, Gto Mexico.

Ver perfil de usuario http://chicharoradiocontrol.forosactivos.net/

Volver arriba Ir abajo

Re: Datos LLantas y Gomas (interesante)

Mensaje por WillysMB el Miér Jul 24, 2013 12:09 pm

Muchisisisisisimas gracias por el trabajo que te mandaste para hacer esto muy, pero que muy util.

GRACIAS.

WillysMB

Mensajes : 1214
Fecha de inscripción : 29/08/2012
Edad : 37
Localización : S/C de Tenerife

Ver perfil de usuario

Volver arriba Ir abajo

Re: Datos LLantas y Gomas (interesante)

Mensaje por txio el Jue Jul 25, 2013 11:15 am

Un hilo muy hutil freedom. Te lo has currado

txio

Mensajes : 606
Fecha de inscripción : 25/10/2012
Edad : 33
Localización : balmaseda

Ver perfil de usuario

Volver arriba Ir abajo

Re: Datos LLantas y Gomas (interesante)

Mensaje por Cipriano el Jue Jul 25, 2013 11:18 am

Le he puesto chincheta, ...se lo merece !!! muy buen aporte compañero.

_________________
Mi Albun de Fotos : http://cipriano.rajce.idnes.cz/
Canal Youtube:
http://www.youtube.com/user/CIPRIdvd/videos
Visita mi foro de Rallys online:http://rbronboard.web-rpg.org/



hosting imagenes

Cipriano

Mensajes : 2098
Fecha de inscripción : 02/09/2010
Edad : 46
Localización : SAN ISIDRO - TENERIFE

Ver perfil de usuario

Volver arriba Ir abajo

Re: Datos LLantas y Gomas (interesante)

Mensaje por FREEDOM83 el Jue Jul 25, 2013 11:50 am

bounce  gracias !!

FREEDOM83

Mensajes : 640
Fecha de inscripción : 05/01/2012
Edad : 33
Localización : Vitoria-Gasteiz

Ver perfil de usuario http://euskoscalecrawler.foroactivo.com/

Volver arriba Ir abajo

Re: Datos LLantas y Gomas (interesante)

Mensaje por FREEDOM83 el Jue Jul 25, 2013 10:02 pm

Ahora un mini tutorial de compatibilidad de Llantas rc4wd y gomas proline

Ya que esta este tema abierto aprovecho aqui , pero quiero poner un listado mas o menos de las llantas rc4wd en las que se pueden montar neumaticos proline sin modificacion.... por lo que he conseguido adivinar...

Hablando siempre de 1.9

SIN MODIFICAR

1-Trail Rider 1.9 Internal Beadlock Wheels with Multi Offset
  http://store.rc4wd.com/Trail-Rider-19-Internal-Beadlock-Wheels-Multi-Offset_p_85.html

2- http://store.rc4wd.com/Pro10-19-Steel-Stamped-Beadlock-Wheel-Silver_p_1413.html
   http://store.rc4wd.com/Pro10-19-Steel-Stamped-Beadlock-Wheel-Black_p_1414.html
( autobusdunero la monto con super swamper )

Y por lo general y lo leido en foros , las de beadlock interno valen sin problema con paciencia


MODIFICANDO ARO INTERNO CON MAS DIAMETRO , traen de 48.26mm , yo para las mias use uno de 52mm .

1- http://store.rc4wd.com/Tango-Down-19-Internal-Beadlock-Wheels_p_34.html

2- http://store.rc4wd.com/Jeep-JK-Stock-19-Scale-Beadlock-Wheel_p_69.html

3- http://store.rc4wd.com/19-Jeep-Cherokee-Limited-Mesh-Beadlock-Wheels_p_1369.html


4- http://store.rc4wd.com/19-Vintage-Cruiser-Stamped-Steel-Wheels-4_p_1525.html
   http://store.rc4wd.com/19-Vintage-Cruiser-Stamped-Steel-Beadlock-White-Wheels-4-_p_1578.html

5- http://store.rc4wd.com/19-Landies-Internal-Beadlock-Wheels_p_1428.html

6- http://store.rc4wd.com/6-Lug-Wagon-19-Steel-Stamped-Beadlock-Wheels-White_p_1931.html
   http://store.rc4wd.com/6-Lug-Wagon-19-Steel-Stamped-Beadlock-Wheels-Black_p_1934.html
   http://store.rc4wd.com/6-Lug-Wagon-19-Steel-Stamped-Beadlock-Wheels-Chrome_p_2444.html

7- http://store.rc4wd.com/5-Lug-Wagon-19-Steel-Stamped-Beadlock-Wheels-White_p_1930.html
   http://store.rc4wd.com/5-Lug-Wagon-19-Steel-Stamped-Beadlock-Wheels-Black_p_1933.html
   http://store.rc4wd.com/5-Lug-Wagon-19-Steel-Stamped-Beadlock-Wheels-Chrome_p_2443.html

8- http://store.rc4wd.com/Land-Rover-Disco-Freestyle-19-Wheels_p_2441.html
   http://store.rc4wd.com/Land-Rover-Disco-Freestyle-19-Wheels-Gun-Metal_p_2559.html

9-Dick Cepek Torque 1.9" Internal Beadlock Wheels
http://store.rc4wd.com/Dick-Cepek-Torque-19-Internal-Beadlock-Wheels-_p_1090.html

10-Dick Cepek DC-2 1.9" Internal Beadlock Wheels
http://store.rc4wd.com/Dick-Cepek-DC-2-19-Internal-Beadlock-Wheels_p_1561.htm


Si alguno mas sabe mas datos que ponga , nos sera de gran ayuda a todos .

Yo tengo unas Wide lock y mecanizando un mm la llanta y otro mm los aros entrarian sin problema...

FREEDOM83

Mensajes : 640
Fecha de inscripción : 05/01/2012
Edad : 33
Localización : Vitoria-Gasteiz

Ver perfil de usuario http://euskoscalecrawler.foroactivo.com/

Volver arriba Ir abajo

Re: Datos LLantas y Gomas (interesante)

Mensaje por Contenido patrocinado Hoy a las 2:59 pm


Contenido patrocinado


Volver arriba Ir abajo

Ver el tema anterior Ver el tema siguiente Volver arriba

- Temas similares


Permisos de este foro:
No puedes responder a temas en este foro.
